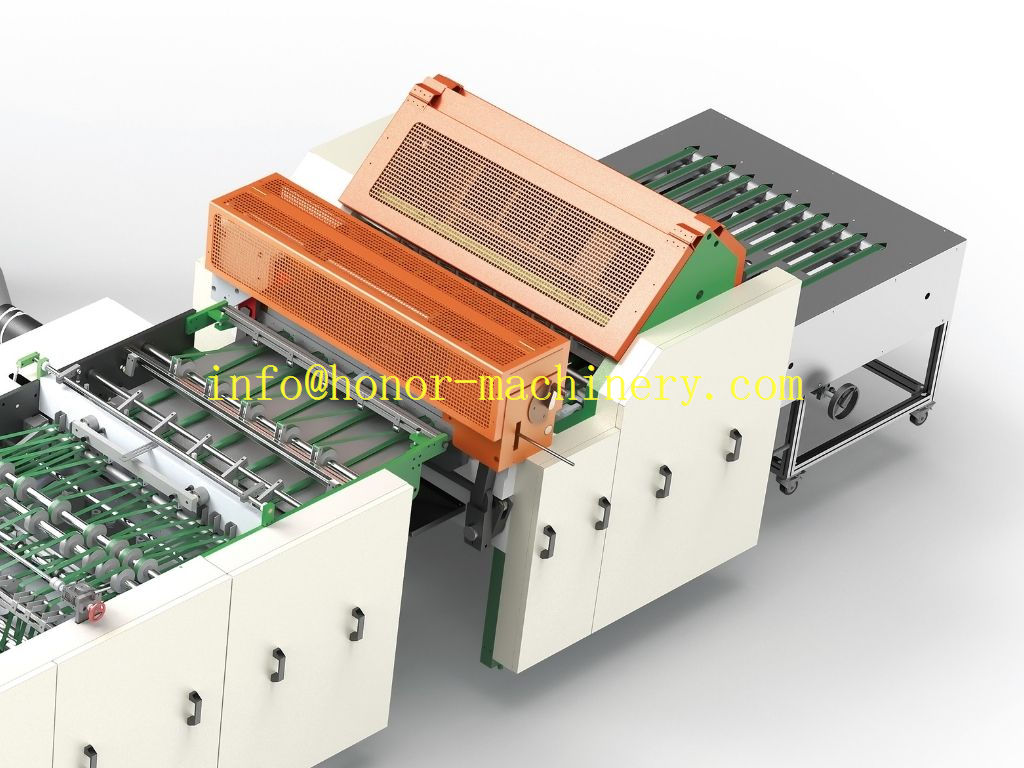

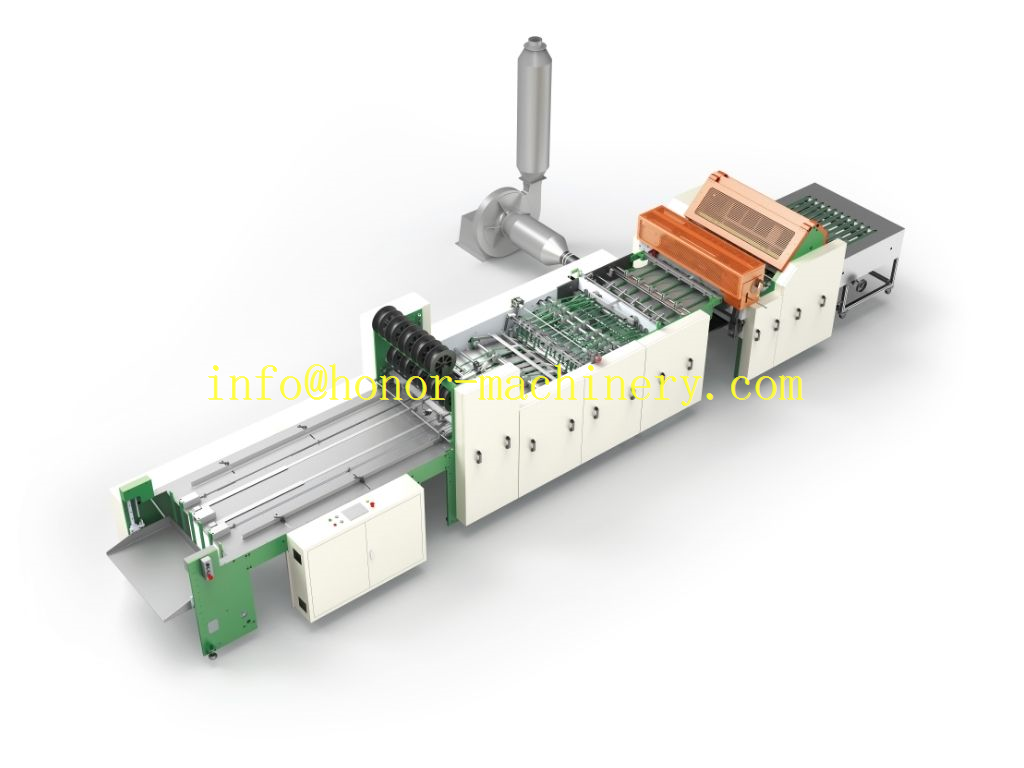

Semi-Auto Exercise Book Machine
Semi-Auto Exercise Book Machine is a practical binding solution built specifically for small and medium-sized enterprises. It can handle stitching, folding, flat-back trimming, and automatic book collecting all in one run.
It works well for making student stapler exercise books, various stitched books, and can also process stitched semi-finished products. Many of our customers use it to run daily orders of school notebooks, with no need for extra manual steps between processes.
The machine can also be flexibly integrated with different production processes, which gives you more options when you need to make different types of products without changing your whole line setup.
Parameters:
| Max. material size | 1040×610mm |
| Cover gsm | 70-350gsm |
| Index paper gsm | 40-150gsm |
| Max. frequecy | 45times/min |
| Stitching thickness | 5mm |
| Long trim | 160-1020mm |
| Side trim | 130-300mm |
| Power | 20.5kw |
| Machine dimension (L×W×H) | 9.6m×1.94m×1.93m(Not include blower cutter) |
| Total machine weight | Appr. 10 tons. |
1.Stitching 2.Folding 3.Spine Pressing 4.Long Trimp 5.Side trim 6.Delivery
Strength and Benefit
The semi-auto exercise book line is made for small to medium-sized workshops that don't have room or budget for a full automatic line. It runs stitching, folding, spine pressing, trimming, and delivery all in one go, and it can be connected to your existing guillotine or slitter without reconfiguring the whole shop floor.
We've had customers run 10,000-20,000 student notebooks a day on this machine, with cover stock from 70-350gsm and index paper from 40-150gsm, no need to swap out parts or change setups mid-batch. At a max speed of 45 cycles per minute and stitching thickness up to 5mm, it keeps the fold lines straight and staples even, so you don't end up with stacks of misaligned books to rework at the end of the day.
The footprint is 9.6m*1.94m*1.93m (excluding the blower cutter), so it fits in a standard 10m long production bay, and at around 10 tons, it doesn't require reinforced concrete foundations like some heavier lines.
Most users find it's a solid middle step: it's faster than hand-binding but doesn't come with the big price tag or steep learning curve of a fully automatic line, which works well if you're starting out or adding a second line for seasonal notebook orders.
Applications
This semi-automatic book binding machine fits the production demands of small and medium factories. It can finish stapling, folding, back trimming and book collecting in one process.
The equipment is mainly used to make student exercise books and various stitched publications, and it also supports processing semi-finished bound products. It can be matched with diverse production procedures flexibly, making it easy to manufacture different types of finished goods on site.
