Honor A4 copy paper cutting& PACKAGING MACHINE
ntroduction:
Honor-A4 copy-sheets packaging machine is our individual creation. It is adopted foreign technique to fill in a domestic gap, instead of old manual packaging, shortenning packaging time, the production and packaging benefits are also improved at the same time.
This double round knife copy paper roll cutting and packaging production line include three models. They have same accuracy of cutting (±0.5mm), maximum speed (300m/min), Length range of cutting (450-1450mm), maximum diameter of material(1600mm), maximum thickness of cutting(550g/m) and height of paper-piling(1400mm). Do you know which part is different? The answer is maximum width of cutting. HONOR-1400's maximum width of cutting is 1400mm, HONOR-1700 is 1700mm, HONOR-1900 is 1900mm.
Feature:
1. Working principle: each connecting rod, feeder and other sections are driven to run by a series of cams inside the machine. During packing process, automatic paper feeding, paper falling, gluing, packaging and so on are completed quickly.
2. This machine is an integration of optics, mechanics, electricity, pneumatics, computer. It features reasonable structure, advanced technique, easy operation. The machine is suitable for the packing of A4 electrostatic copying paper which are used in global office. After packaging, the products are of elegant and neat appearance, working efficiency is increased.
3. This machine can pack A4 copy sheets (210×297mm).
4. Multi-functional digital-indication frequency converter, stepless variable speed regulation, PLC control systems are adopted.
5. Touch screen is equipped, so man-machine interface is achieved.
6. With the function of outer packing paper automatically cut and fed.
7. Common or higher-class color printing paper, glazing paper, film laminated paper, film shower paper can be used for outer packing paper.
8. The most advanced automatic glue spraying system is equipped.
9. Packaging costs can be greatly reduced, packaging exactness, effect, sealing capacity are increased.
10. The packing effect can be fully up to the international level.
Main technical parameters
|
Model |
Honor-A4 |
|
Productive capacity |
16-20Packs/Min |
|
Function of roll overwrap paper can be automatically cross cut and fed |
16-20 sheets/min |
|
Specification of packed object |
210×297×50mm (Based on the height 500 pieces of copying paper.) |
|
Power supply |
380V/3Phase/4Wire |
|
Motor power |
5.1kw |
|
Gluing power |
3.7kw |
|
Compressed air |
0.6mpa |
|
Paper size (Lenght×Width) |
550-560mm×386mm |
|
Overall dimension |
4530×3050×1450mm |
|
Weight |
1.8t |
Packing machine configuration
|
number |
name |
quantity |
original |
certificate |
|
1 |
Three hand Spray machine 106A |
1set |
taiwan |
CE |
|
2 |
PLC control system GB37WZ |
1set |
taiwan |
CE |
|
3 |
Servo motor 350 |
1set |
Sino-foreign equity joint venture |
CE |
|
4 |
Synchronous motor 130TD |
1set |
Sino-foreign equity joint venture |
CE |
|
5 |
worm reducer YS0.75KW-4P |
1set |
domestic |
CE |
|
6 |
three-phase asynchronous motor 90s-4 |
1 set |
Shanghai |
CE |
|
7 |
worm reducerYS0.4KW-4P |
1 set |
domestic |
CE |
|
8 |
cylinder |
14sets |
taiwan |
CE |
|
9 |
Magnetic powder brake FZ100S |
1 set |
domestic |
CE |
|
10 |
proximity switch |
2 set |
Siemens |
CE |
|
11 |
module |
1 set |
Siemens |
CE |
|
12 |
solidstaterelay |
7 pc |
Omron |
CE |
|
13 |
intermediate relay |
19 set |
Omron |
CE |
|
14 |
AC relay |
4 pc |
Schneider |
CE |
|
15 |
drive |
1 pc |
Siemens |
CE |
|
16 |
frequency converter |
1 pc |
Omron |
CE |
|
17 |
Micro switch |
2 pc |
Omron |
CE |
|
18 |
PLC module |
1 set |
Siemens |
CE |
|
19 |
color photoelectric device |
1 pc |
Schneider |
CE |

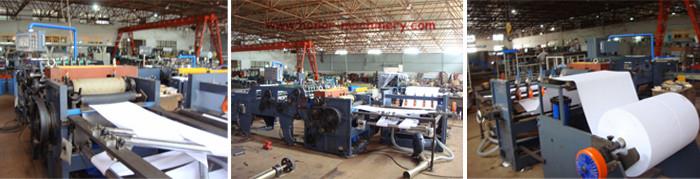

Double Round Knife Copy Paper Roll Cutting
Product
Advantages
This double round knife copy paper roll cutting and packaging production line is a technologically integrated device that combines optics, mechanics, electricity, pneumatics and computer control.
It adopts imported PLC control system, digital display frequency converter for achieving stepless speed regulation. And using touch screen for convenient human-machine interaction. The machine is equipped with an automatic glue spraying system and can realize automatic feeding, cutting, gluing and packaging of outer packaging paper. It supports a variety of packaging materials including color printing paper, glazed paper, laminated film paper and film-coated paper.
The whole machine features a rational structure, stable operation and easy operation. All key electrical and pneumatic components are supplied by well-known brands with CE certification, ensuring long-term reliable operation. The packaging accuracy, sealing performance and appearance quality of the machine can meet international standards.
Customer
Benefits
This double round knife copy paper roll cutting replaces traditional manual packaging and realizes fully automatic cutting and packaging of A4 copy paper. The output can reach 16-20 reams/min. The high output can improve overall overall production efficiency.
The automatic level help you lower labor input and management costs. And the standardized automatic operation improves the accuracy and uniformity of packaging, that enhances the stability of product quality.
We provide mature after-sales support and customizable specifications to meet your different production scenarios and help users form stable, efficient and standardized A4 paper processing and packaging capacity.
Machine color, size, can be customized according to your requirements.
We have more than 15 years experience engineers in paper machinery,We can provide after-sale service and spare parts. You can contact our 24 hours:
