Products Description

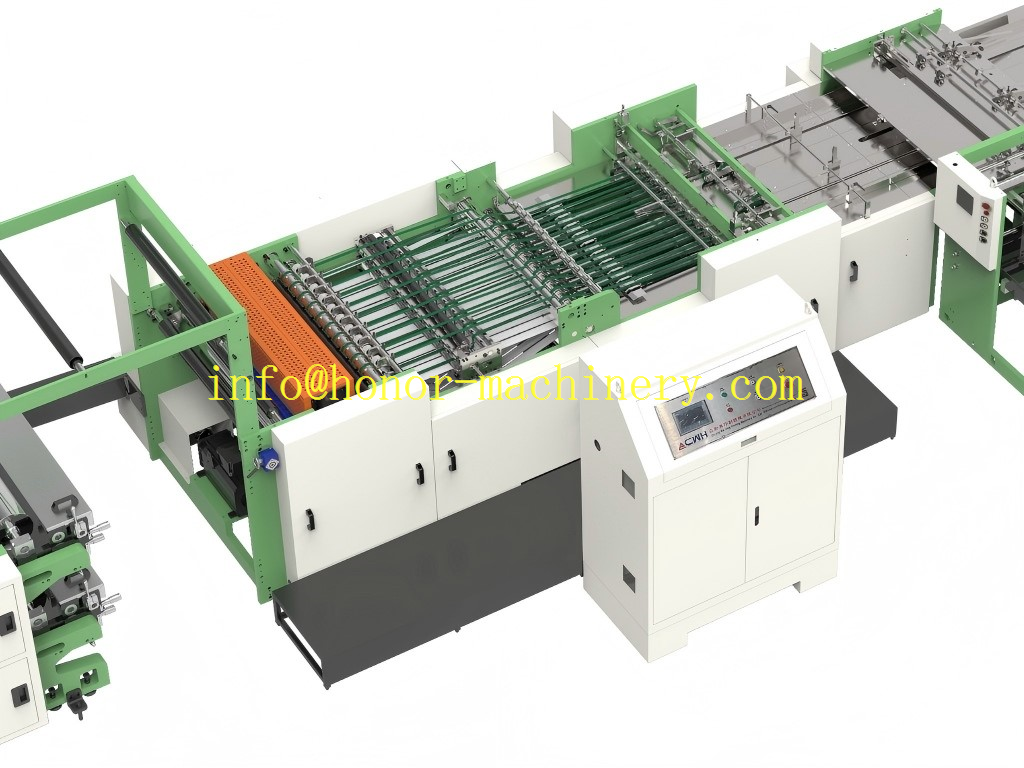

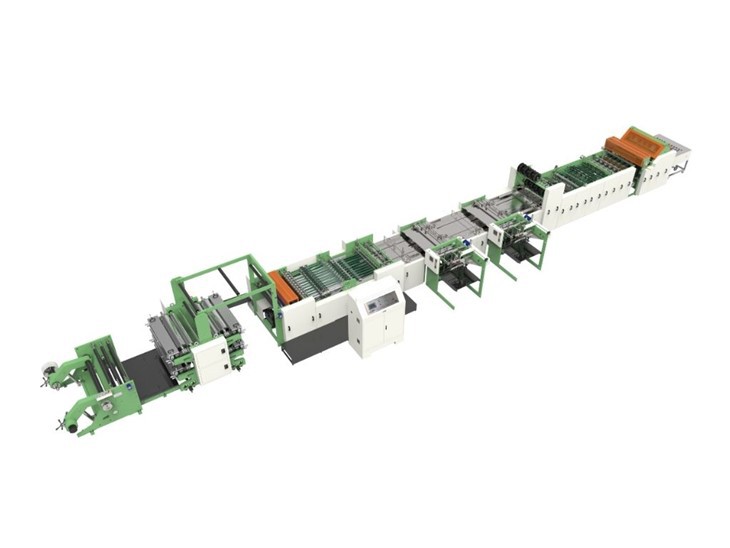

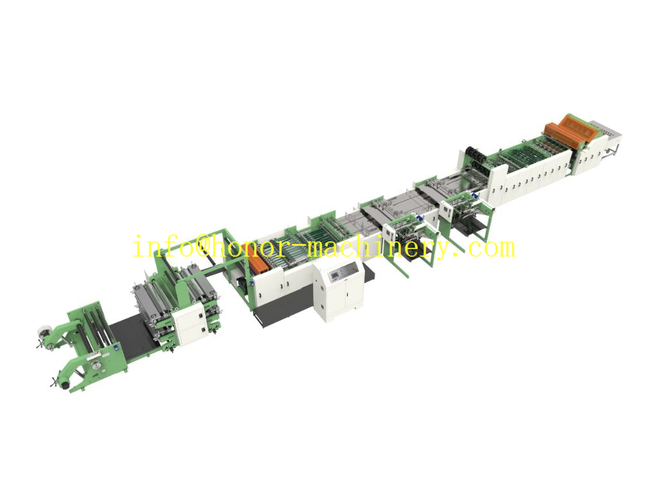

This fully automatic exercise book production line is a highly sophisticated solution for the fabrication of staple pin exercise books,drawing books,etc. It can be used for medium and large runs.This machine includes reel feeding,flexo ruling,sheeter,sheet collecting,overlapping,cover feeding,stitching,folding, spine pressing,face trim,side trim,and delivery.
Parameters
| Max. reel diameter | 1200mm |
| Paper width | 700-1040mm |
| Printing color | 2/2 (two colors on both sides) |
| Printing-cutting length | 300-600mm (in steps of 5mm) |
| Max. ruling width | 1020mm |
| Max. machine running speed | 350m/min |
| Cutting length | 260-600mm |
| Cutting width | 700-1040mm |
| Number of sheets layer | 6-50 sheets |
| Inner page thickness | 55-120g/m² |
| Index page thickness | 100-200g/m² |
| Cover thickness | 120-300g/m² |
| Cover length | 700-1040mm |
| Cover width | 260-600mm |
| Max. stitching thickness | 5mm |
| Long trim | 700-1040mm |
| Side trim | 160-300mm |
| Trimming thickness | 3-10mm |
| Power | 60KW |
| Machine dimension (L×W×H) | 21m×3.5m×2.4m |
| Total machine weight | Appr. 23 tons |
Benefits
Increased Production Efficiency: The fully automated workflow significantly boosts output and reduces labor costs, making it ideal for large-scale production runs.
Consistent High Quality: Precision engineering and automated controls ensure uniform product quality and a professional finish for every book.
Exceptional Durability: Constructed with industrial-grade materials, the AFPS-1020 is built for long-term reliability and consistent performance in demanding production environments.
Why Choose Us?

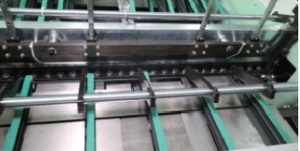

Spine pressing unit
Use two mechanical cams and pressure springs to square the book back below.
Easy to operate.Both thin and thick notebooks can be pressed without any modifications.
Stitching unit
The nail head is driven by the guide rail slider.
The sensor is set up to manage the switches on the stitching heads.When there is no sheet, the coupler willstop stitching heads.

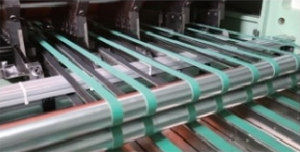

Trimming unit
The trimming knife uses a 60mm thick board to make the frame sturdy.
The knife holder is made of cast iron material to ensure the knife's stability.
Installing the trimming knife makes paper cutting more labor-saving.
The trimming knife uses a slider to change tools quickly.
The unit will do the first face trim,then 2 sides,3rd, and 4th trim.

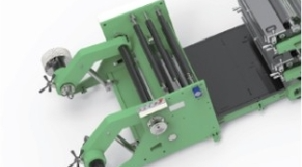

Reel feeding stand unit
Paper de-curling system with servo.
Use a hydraulic pressure brake to stop the machine immediately from high speed.
The mechanical chuck is simple to replace and repair,has a low damage rate,and a long service life.

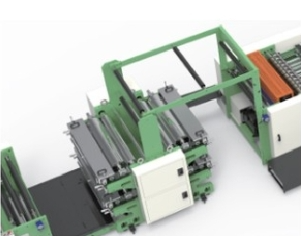

Flexo ruling unit for 2C+2C
The printing stack frame is made of cast iron to ensure the accuracy of the lining.
Controlled by hydraulic cylinders.
1x ruling tower for 4x ruling inkers equipped with 4x transverse inkers for ruling cylinders.
4xmetal anilox rollers.
2x ink trays for 2 colors
Sheeter unit
The sheeter unit frame is made of a40 mm-thick board to ensure the machine is more sturdy.There is no vibration when the machine runs at high speed,and can achieve a high-qualty cutting.
The rotary sheeter is made with a high-speed blade for long-lasting cutting.
The timing belt is used to ensure accuracy,and it is low-noise,easy to maintain,and lubricated at a low cost.
1x set of rotary cutting system.

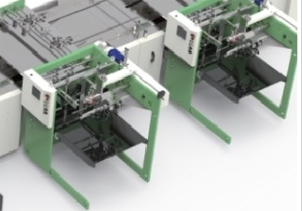

Cover inserter
It can increase the number of feeders,depending on needs.
The auto-cover feeders are fully controlled by servo system and sensors toincrease the accorece and minimize missed feed and wastage.
The stack height is 800mm.

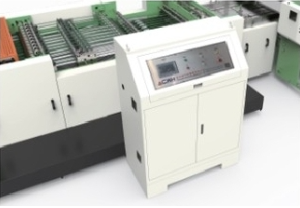

Electric controller
This machineis installed with a display monitor to control the speed.
The working console includes a touch screen,PLC controller,and a hydraulic workstation in the paper feeding section.
