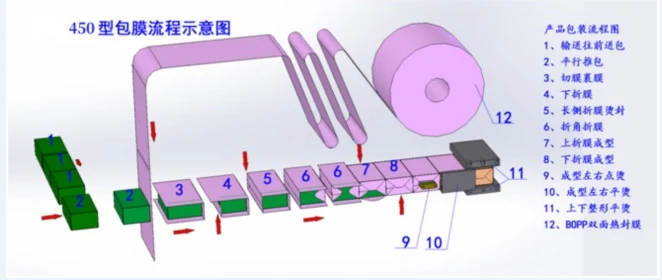

Schematic Diagram of Wrapping Process
This packaging machine matches with single-blade paper cutter to pack office paper in A3, A4, A5 and other sizes.
1.Conveyor feeding for package forward
2.Horizontal package pushing
3.Film cutting and wrapping
4.Bottom film unfolding
5.Long-side film folding and heat sealing
6.Corner folding and film wrapping
7.Top film folding forming
8.Bottom film folding forming
9.Left and right spot heat sealing after forming
10.Left and right flat heat sealing after forming
11.Top and bottom shaping flat sealing
12.BOPP double-sided heat-sealable film
1.Manual loading
2.Box pushing
3.Vertical film feeding down
4.Long side sealing
5.Upper edge folding on both sides
6.Lower edge folding on both sides
7.Side sealing
8.Shaping / Trimming
9.Finished product
|
Adapt to packaging materials |
0.018 mm-0.03 mm BOPP double-sided heat-seal film, coating paper, coated kraft paper; outer diameter 320 mm, inner diameter 70 mm |
|
Packaging Speed |
10-40 packs per minute (speed adjustable depending on product size) |
|
packing measurement |
L80-420 mm; W60-300 mm; H30-120 mm (all dimensions cannot be set to the maximum or minimum value). |
|
design power |
8.5kw |
|
power consumption |
8.5kw |
|
voltage |
380V-50Hz |
|
working air pressure |
0.7Mpa |
|
Device Weight (approx.) |
900kg |
|
Host Size |
2900*1100*1850 |
|
Transportation Dimension |
1550*380*830mm |
Configuration List
|
Electrical Device Name |
quantity |
Brand and Place of Origin |
|
Main servo motor |
1 |
Xinjie |
|
reduction box |
2 |
Oumait |
|
servo motor |
3 |
Xinjie |
|
touch screen |
1 |
|
|
Temperature Control Module |
1 |
|
|
PLC |
1 |
|
|
AC contactor |
1 |
Schneider |
|
auxiliary relay |
2 |
OMRON |
|
Travel Switch |
1 |
|
|
solid state relay |
7 |
|
|
Cylinder |
9 |
Yadeke |
|
electromagnetic valve |
5 |
|
|
Transmission Motor |
1 |
Ningbo Zhongda |
Core advantages and your benifit

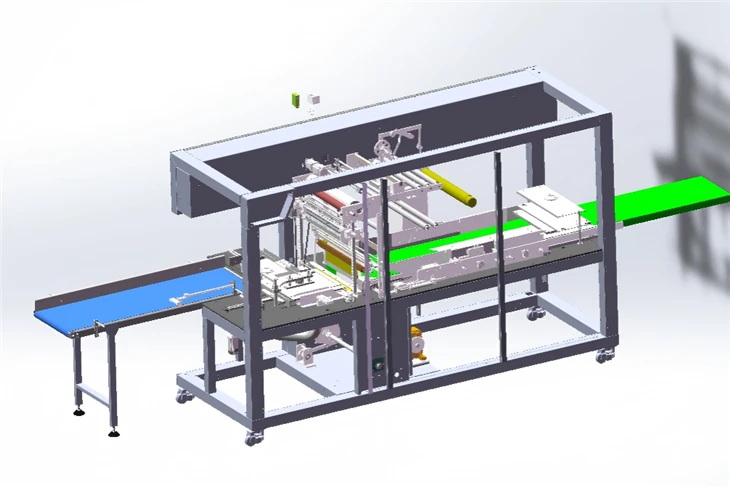

Drawing on proven home and overseas machinery design experience, this 3D wrapping machine adopts mechanical transmission assisted by pneumatic assemblies for consistent operation.
Film feeding is driven by sprocket-chain and stepper motors, while overload protection on the box pushing mechanism cuts down unexpected faults; from my practical installation experience, users can pick straight or 90° turn conveyor layout freely to match different factory space. Its compact frame allows quick product conversion by swapping a small number of spare parts, so downtime for size change or routine troubleshooting stays minimal on-site.
In full automatic workflow, it finishes feeding, wrapping, folding, sealing, shaping, counting, anti-counterfeit tape fitting and hot stamping for either single or grouped cartons; saved preset specifications and photoelectric tracking also enable stacked packing, which helps clients substitute traditional heat shrink packaging for medicine, cosmetics, health food, tea and cigarette boxes.
For wrapping supplies, it fits 0.018–0.03mm double-sided heat-seal BOPP film, laminated paper and kraft paper, running at 10–40 packs per minute with adjustable speed to cover package dimensions from L80–420mm × W60–300mm × H30–120mm. Major electric and pneumatic parts are supplied by reputable manufacturers like Xinjie, Schneider, Omron and AirTac for reliable long-term use, and we provide one-year machine warranty plus lifelong paid maintenance as standard service.
Contact us now to lock in the valid quotation and arrange your machine delivery schedule.
