Introduction

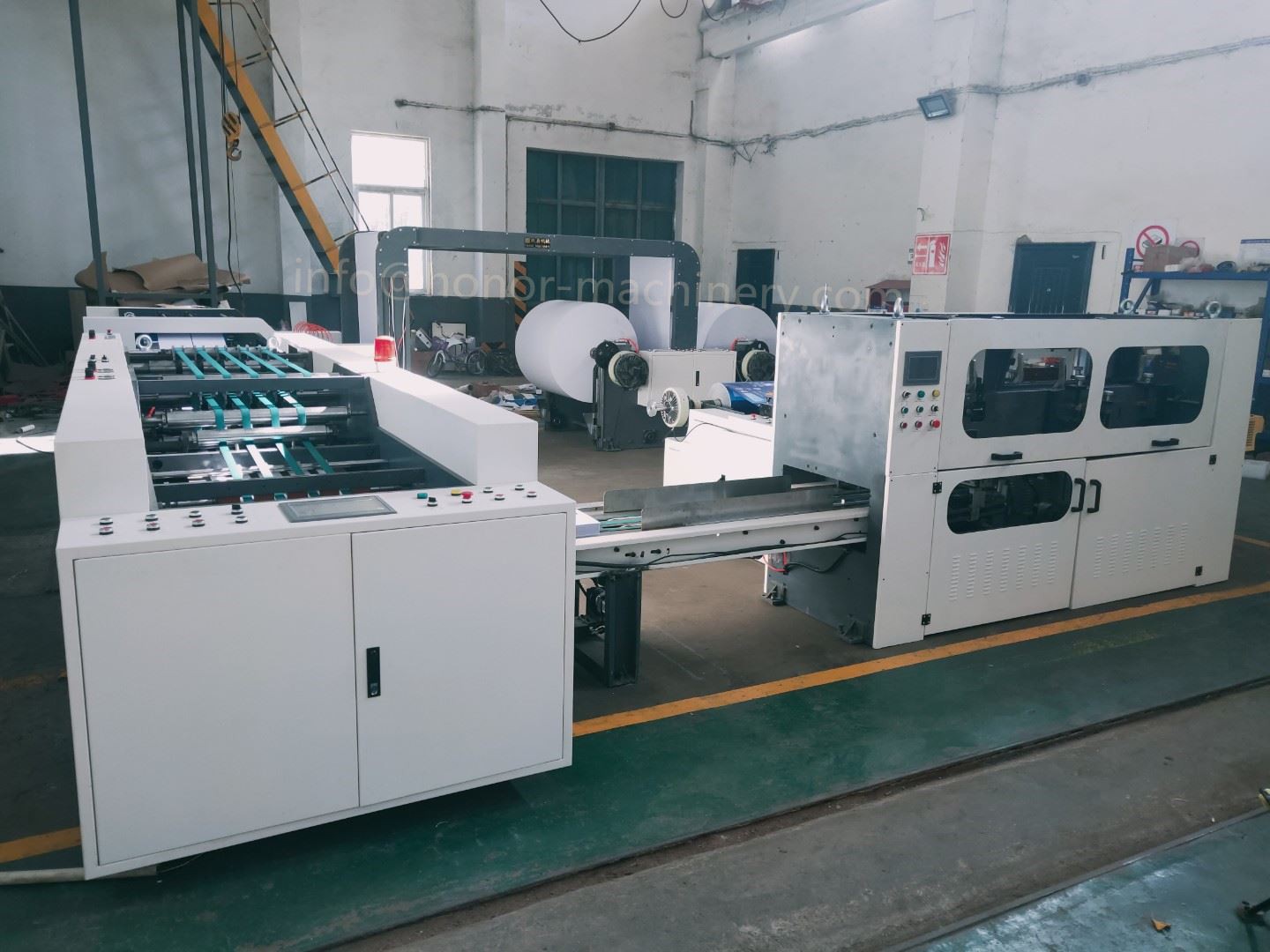

At Honor Machinery Group, we have developed the Model Honor-A4-4, a line of A4 paper cutting and packing machine, ideal for industrial cutting and packing paper at 20-25 packs per minute. This industrial paper cutter for A4 copy paper cuts larger paper rolls into size A4. We also customize the paper product size according to customer needs. Contact Honor today with questions, and our friendly staff will help you find what you need. Optional parts to our automatic paper wrapping machine are also available.

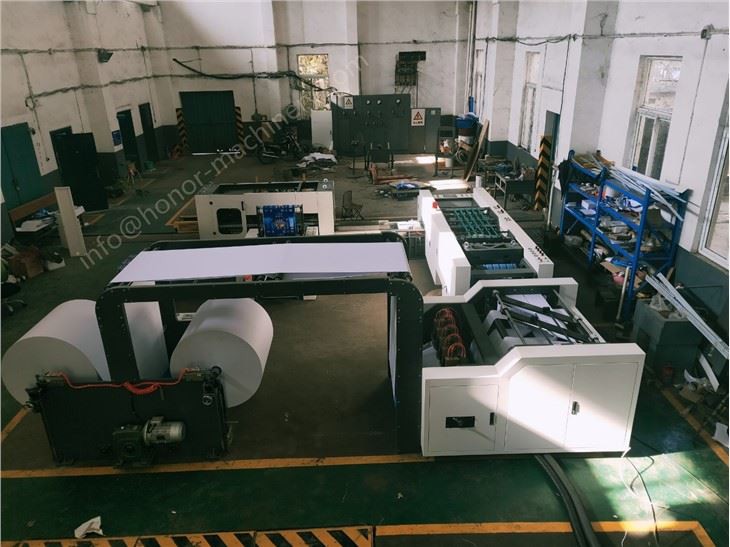

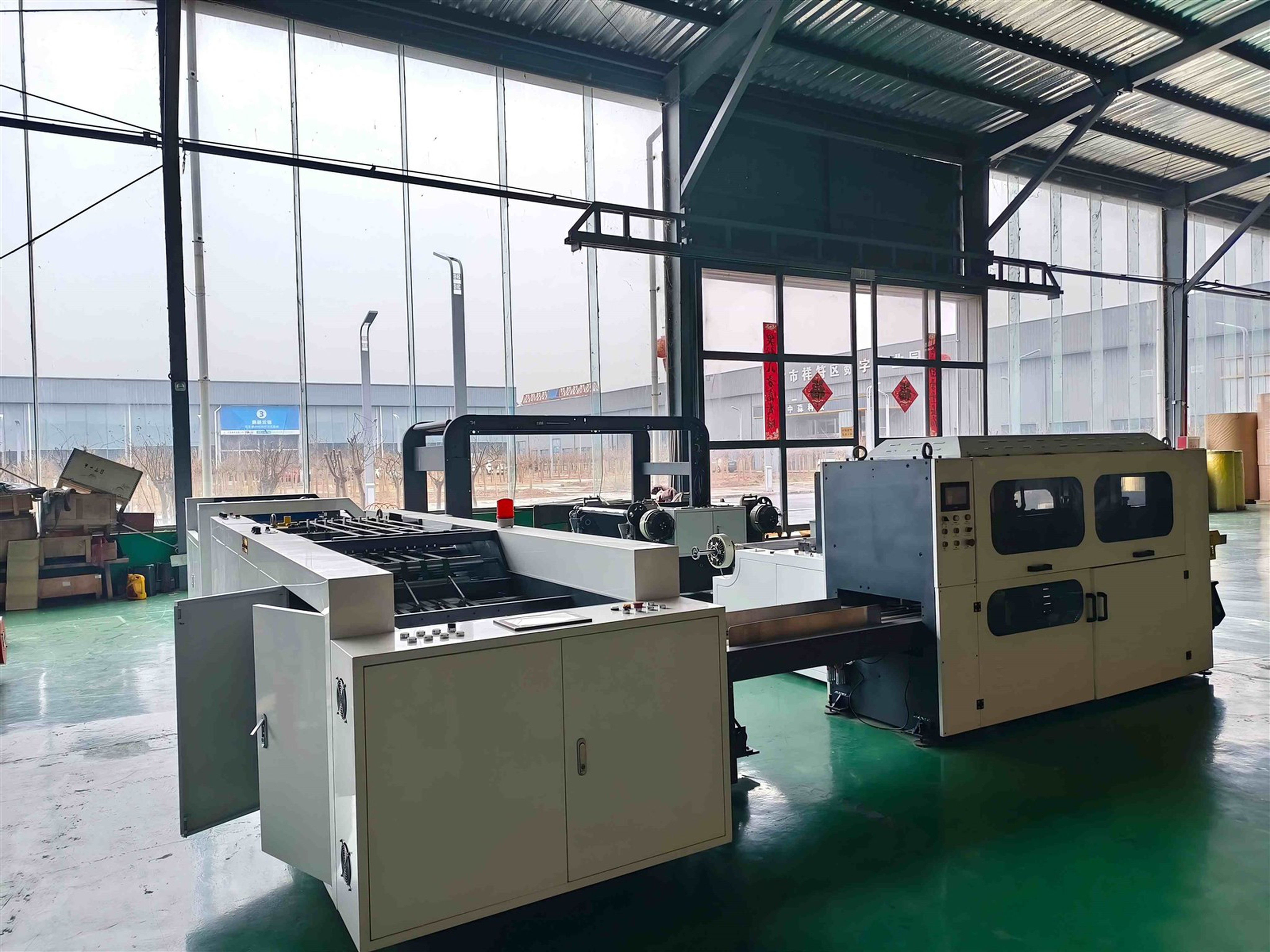

This machine integrates unwinding, slitting, cross‑cutting, counting, stacking, conveying and full‑automatic packaging, realizing one‑stop production from paper rolls to finished A4 reams, which is widely used in paper mills, printing plants, office paper processing and other industries.
The A4 paper cutting and packing machine stacks paper in reams directly after cutting the paper roll:
Paper Roll:
Copy Paper:
Invention Patents for the A4 Paper Cutting and Packing Machine
1. Sheet collecting equipment for paper cutting machine.
2. Paper cutter shaft for cutting machine.
3. Wrapping paper folding equipment for copy paper packing machine.
Technical Introduction of the A4 Paper Cutting and Packing Machine
Our copy paper slitting, sheeting & ream wrapping machine (model Honor – A4) is a newly developed industrial paper equipment that uses advanced technology for a high production speed. With high cutting precision, the fully automatic paper equipment meets international standards, saving time and labor.
Features
The paper cutting and packing machine is fully automatic with a PLC control system and mechanical automation. The whole process consists of unwinding paper rolls, cutting, counting, transporting, reams dispensing, and packaging so the labor intensity is decreased.
It adopts PLC and touch screen, it supports parameter preset, fault self‑diagnosis, real‑time production data monitoring and one‑key specification switching, with stable operation and low failure rate.
Configuration of the A4 Paper Cutting and Packing Machine
|
1 |
Non-shaft roll-loading control system |
2 sets |
|
2 |
Advanced tension control system - |
4 sets |
|
3 |
Anti-warping mechanisms |
4 sets |
|
4 |
Slitting knives |
5 sets |
|
5 |
Simultaneous cross-cutting knives |
1 set |
|
6 |
High speed paper feeding system |
3 sets |
|
7 |
Low speed paper feeding system |
2 sets |
|
8 |
Edge trimming and discharging system - |
1 set |
|
9 |
2D oscillation, making sheets orderly; screw lifting device used to collect sheets for reams |
1 set |
|
10 |
PLC counting device |
1 set |
|
11 |
Reams of paper longitudinal ejecting equipment |
1 set |
|
12 |
PLC error alert and halting system, PLC control system |
1 set |
Main Technical Parameters of the A4 Paper Cutting and Packing Machine
|
Max. width of paper roll |
846mm |
|
Net cutting width |
840mm |
|
Number of cutting tools |
4 cuttings-A4 210mm(width) |
|
Diameter of paper roll |
400-1200mm |
|
Diameter of paper roll's core |
3" (76.2mm) or 6" (152.4mm) |
|
Weight of paper sheet |
60-100g/ m² |
|
Length of cut paper |
A4(297mm) |
|
Paper quantity |
0-500 sheets |
|
Max. ream height |
65mm |
|
Designing speed of paper cutting |
160m /min |
|
Cutting speed |
538times/min |
|
Cycle time of each ream |
4.3/min |
|
Paper cutting speed |
130m /min |
|
Working cutting speed |
437times/min |
|
Ream delivery speed |
3.5/min(14 reams/min) |
|
Paper cutting accuracy |
±0.2mm |
|
Paper cutting condition |
1.Stable speed |
|
Transmission |
AC Frequency conversion, stepless speed regulating |
|
Main power source |
3phase/380v/50Hz |
|
Control voltage |
220V AC/22V DC |
|
Total Power |
35KW |
|
Air consumption |
300NL/min |
|
Pneumatic pressure |
6bar |
|
Overall dimension (cutting unit) |
15000×2750×2100mm |
|
Weight (cutting unit) |
12 T |
|
Overall dimension (packing unit) |
6000×3400×1600mm |
|
Weight (cutting unit) |
2.5 T |
12 months Warranty
24/7 after-sale service
Installation and Training on site
Solid material
Detailed Introduction for the A4 Paper Cutting and Packing Machine
|

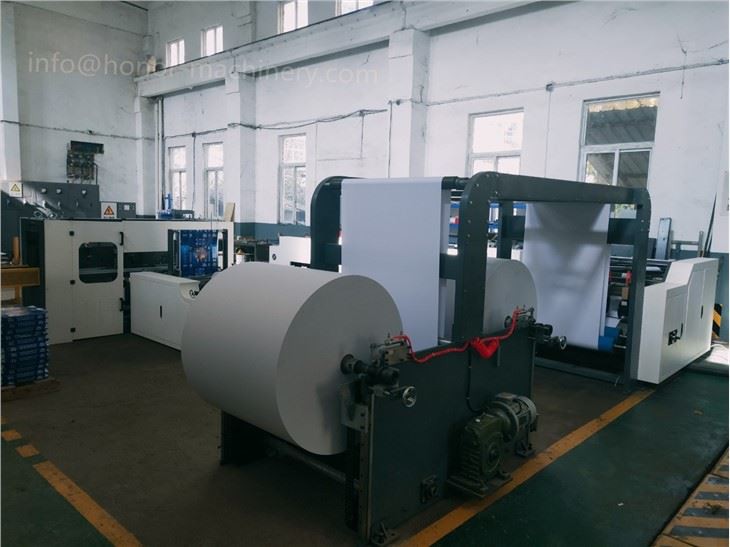

Roll Loading Unit |
Incorporates 4 unwinding rolls and an advanced magnetic-power brake and hydraulic system so the paper is fed stably through without wrinkling or tearing. Support non‑stop roll changing, high efficiency, suitable for large‑scale continuous production. |
|
Slitting Unit |
Uses Delsar's up-slitting knife from Italy, a knife with better sectioning and a service life 3 times longer than knives from other brands. With automatic knife adjustment and edge trimming function, ensure neat slitting edges. |
|
Sheeting Unit |
Uses wear-resistant rubber rollers and advanced double cyclotron hob technology for accurate cutting and a long service life. |
|
Uses hard cast knives Germany's St Paul brand. This knife has a service life 6 times longer than similar knives from other brands. |
|
|
Conveying Unit 1 |
Uses ContiTech's belts from Germany and a Weinview touch screen from Taiwan. |
|
Sheet Stacking Unit |
Uses a cylinder without piston rods and an up and down motor from Germany, reducing the vibration and noise. |
|
Conveying Unit 2 |
Stably conveys reams of sheets to the wrapping unit. |
|
Wrapping Unit |
Wraps reams of sheets (500pcs) automatically. |
|
Electrical Components |
Uses Siemens' PLC and Omron's photoelectric switch, ensuring a long service life. Full machine electrical system complies with CE safety standard, safe and reliable. |
Price-Included Services
