High Speed Slitting Machine Servo Drum Slitting Machine

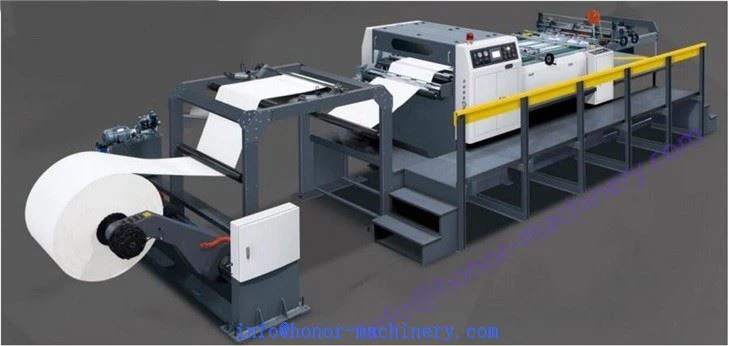

HONOR -1400 /1700 /1900 High Speed AC Servo Rotary Paper Cutting Machine

More details please feel freely comtact with is:info@honor-machinery.com

Honor high speed paper cutting machine adopts advanced technology of EUROPE and it is driven by AC servo motors,PLC control, the high cutting speed reaches 350 cuts /min.



And it can cut 8 paper rolls at one time.This series of Reel Cutter 1400/1700 /1900 is used to cut the paper roll into paper sheets.The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.



It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system.

Model: HONOR-1400/1700/1900mm

MAIN SPECIFICATIONS:
Reference weight of cutting paper: 50-550GSM
Cutting accurancy: 0.5mm tolerance allowed
Max. Cutting speed: 350sheets/min
Max. Cutting meter speed: 350m/min
Cutting lenght range: 450-1450mm
Max. Diameter of reel: 1800mm
Paper stack height: 1300mm
Max. Width of cutting paper: 1400mm/1700/1900mm





All the components and screws used in our machines are of the highest quality.

Main Frame & Structural Bolts

Type: High-tensile hex bolts (Grade 8.8 / 10.9)Function: Secure the main welded steel frame, cross beams, and unwinding stands.



These fasteners withstand continuous vibration and heavy static loads during high-speed operation.Key Parameters: Proof stress ≥ 800 MPa, tightened with torque-controlled tools during assembly to prevent loosening.

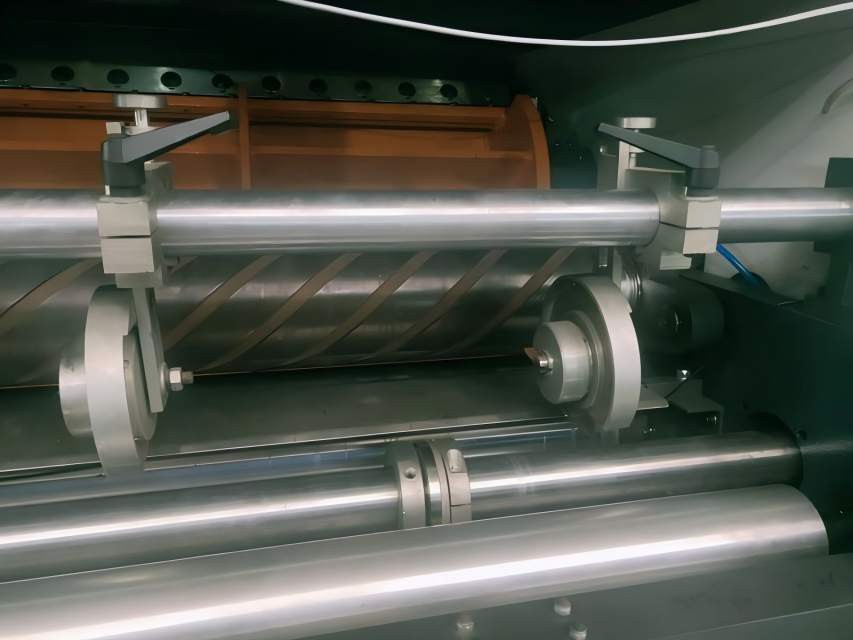

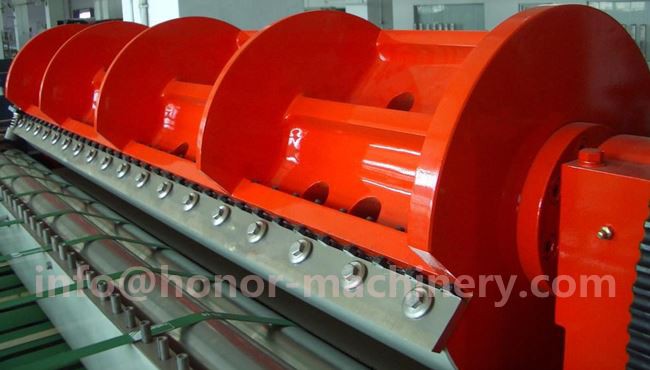

Rotary Knife & Cutting Assembly Screws

Type: High-precision socket cap screws (Grade 12.9)Function: Fasten the rotary knife holder and cutting components, maintaining tight alignment under high centrifugal force at 300 m/min cutting speed.



Key Parameters: Ultra-high strength, paired with anti-loosening washers to prevent shifting during continuous cutting.



Unwinding & Tension Control Fasteners

Type: Self-locking hex screws with spring washersFunction: Secure paper roll shafts, tension rollers, and guide rails. They resist loosening caused by continuous material pull and mechanical vibration.



Key Parameters: Zinc-plated surface for corrosion resistance, suitable for long-term use in humid workshop environments.

Electrical & Control Cabinet Screws

Type: Stainless steel cross-head / Phillips screwsFunction: Fix PLC, servo drives, and control panel components. They allow easy disassembly for maintenance while ensuring stable electrical connections.



Safety & Guard Fasteners

Type: Tamper-proof screws with safety coversFunction: Secure safety guards, protective shields, and access panels to prevent unauthorized removal, complying with international safety standards.



Key Parameters: Require special tools for removal, designed to meet CE and local machinery safety regulations.

Using these high-quality screws brings practical, long-term benefits to customers that directly impact production stability and maintenance costs.

First, they prevent unexpected loosening under continuous vibration and high-speed operation. This means fewer breakdowns caused by loose components during peak production, which helps maintain consistent output and reduces costly downtime.

Second, they ensure precise alignment and stability of key parts like the rotary knife assembly and guide rails. With reliable fastening, cutting accuracy stays consistent over time, reducing dimensional errors and rework.

Third, they lower long-term maintenance costs. High-tensile, anti-corrosion screws resist wear, rust, and fatigue, so they don't need frequent replacement. This reduces both the cost of spare parts and the labor time spent on tightening or changing fasteners.

Fourth, they improve workplace safety. Securely fastened components reduce the risk of loose parts falling or moving unexpectedly during operation, creating a safer working environment for operators.

Finally, they extend the overall service life of the machine. The frame and critical assemblies stay rigid and stable, so the machine runs reliably for years without major structural issues.

FAQ
1. What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min
B: Paper thickness in GSM
C: Some photos of your finished products

2. Are you a manufacturer
Yes we have been manufacturing such machines over 10 years and also we are a professional exporter.

3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.

4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)

5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.

6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.

The Paper cutting machine shipment.

24 hours service for you.

Please feel freely contract:
