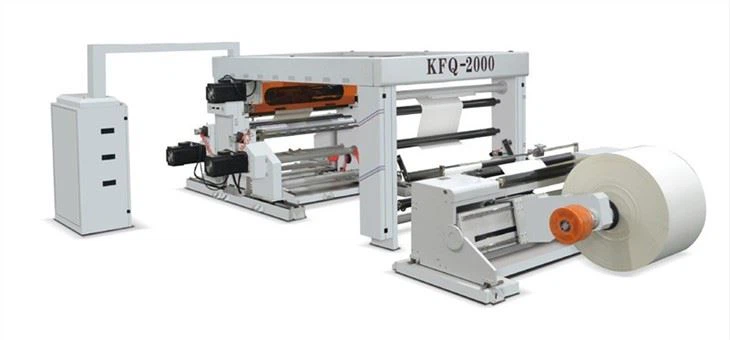

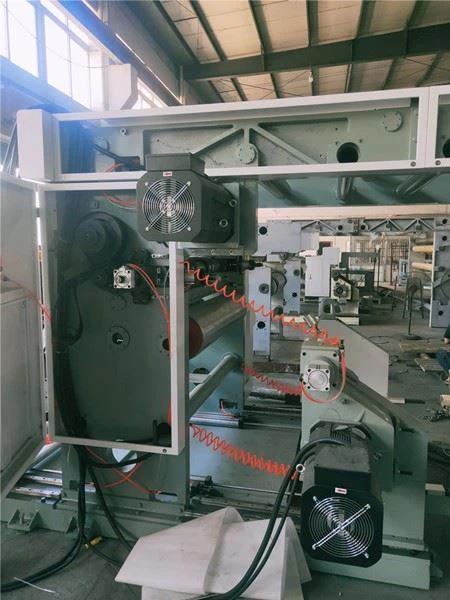

Gantry Slitting Machine Features：
The slitting machine adopts PLC touch screen control, automatic taper tension, central surface coiling.
The main machine of scutters adopts three motor frequency conversion vector control to keep balanced operation in acceleration. Automatic meter meter alarm function.
The winding adopts A and B expansion structure, and the finished products are unloaded automatically.
Unwinding adopts automatic deviation correction system, so that irregular materials can be cut normally.
Use automatic suction and scrap paper to remove waste edges.
Unwinding adopts hydraulic shaftless automatic feeding device.
Parameters and Indicators:
1, material type: white board paper, carbon free paper, film paper, double adhesive paper and other materials;
2. Material thickness: 60-450g (paper)
3. Maximum diameter of raw material: 1500mm
4. Material tube core: 3-6# paper tube;
5. Maximum width of raw material: 1300mm;
6. Minimum width of raw material: 800mm
7. Roll width: 1350mm;
8. Cutting width: 50-1300mm;
9. Winding tube core: 3 inches
10. Maximum diameter of winding: 1500mm;
11. Total deviation correction stroke: 150mm;
12 correction accuracy: ±0.15mm
13. Maximum speed: 350 m/min;
14. Cutting speed: 10-- 350 m/min;
15. Total power:
16. Total weight: about 13 tons;
17. Dimensions: 7500 long, 3700 wide, 2300mm high;
18. Slitting tool: according to user requirements, standard configuration of 20 sets
19. Upper knife: φ 160*100*50mm.
20. Lower round knife: φ 150*120*20mm.
21. Material receiving shaft: 2 3# air expansion shaft
22. The whole equipment is equipped with 15 φ 120 aluminum rollers, 1 rubber roller and 1 active steel roller.
