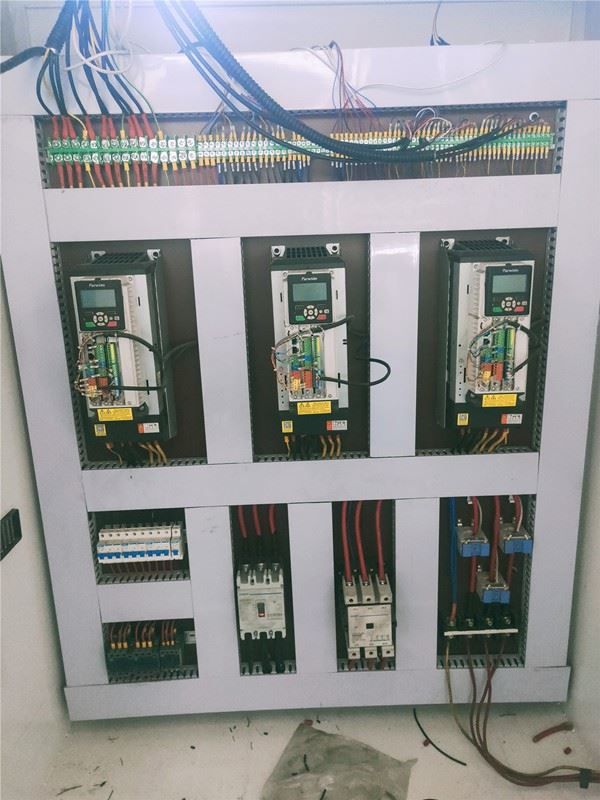

Parameter index:
1. Material type: PET, BOPP, PE, self-adhesive, paper, printing composite and other roll materials;
2. Material thickness: 30-350g (paper)
3. The maximum diameter of the raw material: 1600mm
4. Raw material core: 3# and;
5. The maximum width of the raw material: 1300mm;
6. The minimum width of the raw material: 300mm;
7. Roller surface width: 1350mm;
8. Slitting width: 40-1300mm;
9. Winding core: 3# paper tube;
10. The maximum diameter of rewinding: 1200mm;
11. The total stroke of deviation correction: 150mm;
12. Correction accuracy: ±0.15mm
13. Maximum speed: 350m/min;
14. Slitting speed: 10---350m/min;
15. Total power of power supply: 18.5kw
16. Total weight: about 4500KG;
17. Dimensions: length 4000, width 2800, height 1600mm;
18. Slitting tool: According to user needs, standard configuration 15 sets, 5 blades.
19. Rewinding shaft: equipped with 2 3# inflatable shafts for recycling.
20. The whole equipment is equipped with Φ90 hard alumina guide roller.
Function description of each part:
(1) Unwinding part:
1. The unwinding adopts a shaftless hydraulic cone, which is convenient for one person to operate. The special cone top form is adopted, which does not damage the inner wall of the tube core. The 3-inch head device is sturdy and durable. Two hydraulic clamping cylinders, left and right, separated at the same time, the clamping operation is extremely convenient.
2. Two hydraulic power loading and unloading cylinders save manpower and shorten loading and unloading time.
3. The unwinding diameter is automatically detected by the proximity switch at the unwinding drive shaft, no need to input the material thickness, and the unwinding residual roll diameter can be set to automatically decelerate and stop, which is convenient for the next roll of material to be connected.
4. Equipped with a mechanism for manually adjusting the loose and tight sides of the unwinding material, the adjustment range: ±20mm.
5. The material is automatically rectified by the automatic deviation correction system. The whole frame adopts guide rail type to move left and right, and the moving part adopts threaded screw rod, which is driven by the Puliyuan servo motor to realize automatic correction.
6. The unwinding adopts corridor feeding, which makes the operation easier.
7. Two sets of 20KG magnetic powder brake are used for unwinding.
