Product Introduction:
This sheeter machine is for high capacity paper converting which is widely use in the paper mill, printing and packaging industry. This model is most advanced model of paper sheeter in China.advantages Smooth operation: neat delivery, flat on both sides, low noise. Easy to operate: cut paper smooth, without burrs. High output: the output per machine can be used for 5 printing machines.
Send Inquiry
Chat Now
Description
Technical Parameters

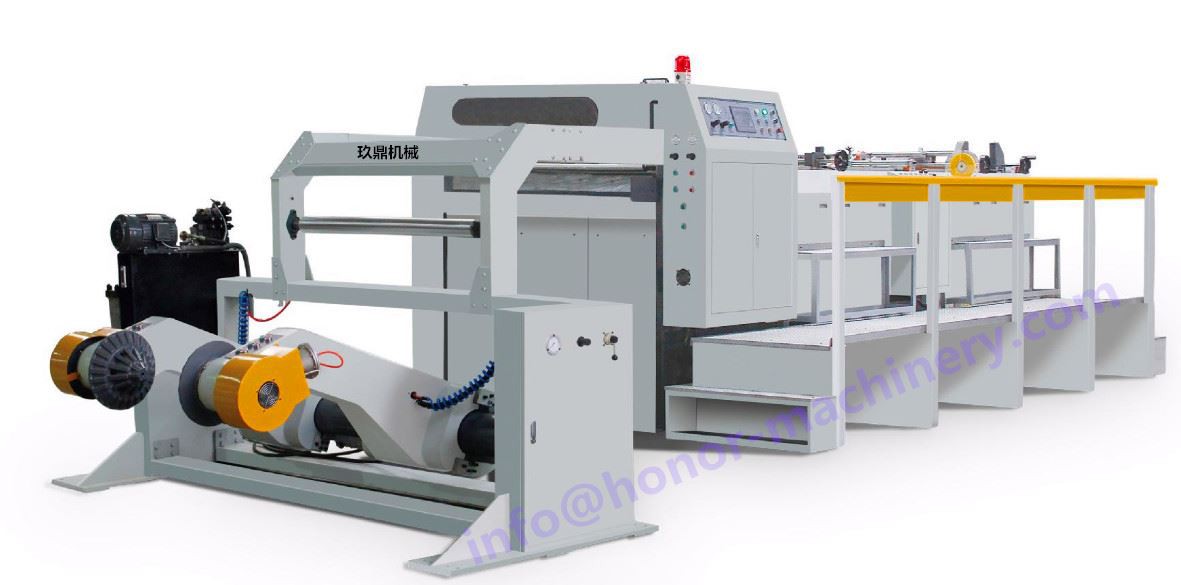

QQ20210507200125

Honor Servo Control Paper Sheet Cutting Machine




Advantages:

Smooth operation: neat delivery, flat on both sides, low noise.

Easy to operate: cut paper smooth, without burrs.

Strong adaptability: the upper and lower knives can adjust the width between 2 and 1700mm.

High output: the output per machine can be used for 5 printing machines.


This series servo control paper roll to sheet cutting machine applies the advanced technology of Germany and UK. The computer control system uses KEB,servo motor from Germany and AC transducer from Japan, which is international top brand. The conveyor belt applies NITTA from Japan. The pneumatic vibrator adopts FINDEVA from Switzerland. The electrical system choose SCHNEIDER & OMRON, these high quality components can guarantee the paper sheeting cutting fast and very reliable. Germany made precise bearing and rotary cutting knife assure the high sheet cutting precision. The touch screen is simple and convenient for operation. The anti-curve system assures the paper flat and smooth to delivery.



Main specifications:


Model

HONOR-1400/1700/1900

Type of cutting knife

The up knife is rotary cut and the down knife is fixed

Thickness of paper

60-550gsm

Cutting precision

The cutting length every 1000mm:+/-0.5mm

Max cutting speed

350cuts/min

Gross weight

11,000kgs/ 13,000kgs/ 15,000kgs

Pile height

Max 1300mm

Max. cutting linear speed

350m/min

Cutting length range

450~1450mm

Max. unwinding diameter

1650mm (65")Max

Max. paper-cutting width

1400mm (55")/1700mm (67")/ 1900mm (75")

Voltage

380V/220V, 50Hz/60Hz


We also welcome you to order special made size and specifications.


Sketch map:
cutting machine for paper with 1 reel


cutting machine for paper with 4 reel



Machine parts pictures:


We have more than 15 years experience engineers,We can provide after-sale service and spare parts. You can contact our 24 hours:
