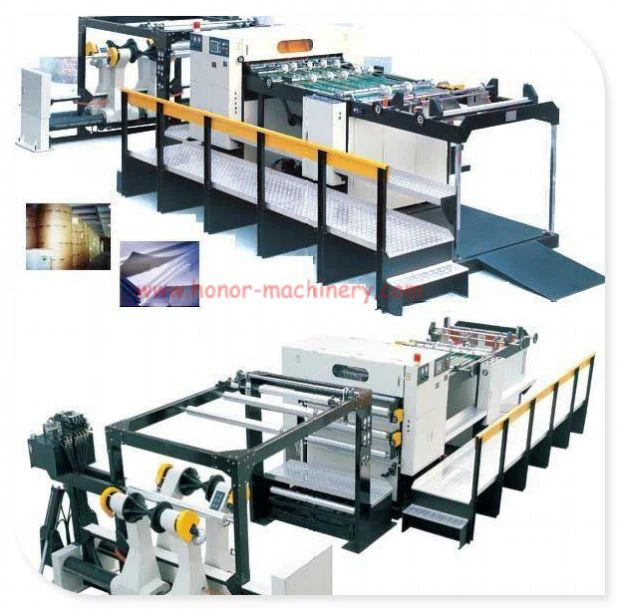

paper reel cutting machine
Product Description
Parameter:
Model: HONOR 1100/1400/1700/1900A
Cutting Mode: The top knife cuts reciprocally and the down knife is fixed
Paper Cutting Thickness: 60-500GSM
Cutting Precision: +/-0.5mm for cutting length 1000mm
Max Cutting Frequency: 300 cutting stroke/min
Max Cutting Speed: 300m/min
Cutting Range: 450-1650mm
Max Unwinding Diameter: 1800mm
Max Paper Cutting Width: 1100mm/1400mm/1700mm/1900mm
Gross Weight: 9000Kg/11000Kg/13000Kg/15000Kg
Usage:
This machine is suitable for PVC, paper,non woven roll, gold-silver paperboard, plain rainbow paper, the positioning laser transfer paper, white paper, plastic sheet and roll materials. Applied PLC system to control electrical system. Man-machine controlling system, digital display; fixed-length control stepper motor system control, automatic identification standard photoelectric switch imported to ensure the accuracy of the truncation. Advanced machine control mode, controlling the speed of the main motor, imported stepper motor, feeding motor through the computer to achieve synchronous operation.
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
We put your order into our tight production schedule, ensure your punctual delivery time.
Production / inspection report before your order packed.
Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
We respect your feed back after receive the goods.
We provide 12-24 months warranty after goods arrive.
We promise all spare parts available in lifetime use.
We respond your complain within 48hours.
Packing Machine Part
choose the packing unit as your requirement
Customization is also avaliable
Working width of packaging ream: Gross width (310mm); Net width (297mm)
Working height of packaging ream: Max55mm min45mm (less than 55mm or greater than 45mm according to user requirements)
Wrapping paper width: 560mm
Packing paper weight range: 70-100g/m
Wrapping paper grade: high-grade coated paper or peritoneal paper
Design speed: max50 reams/min
Production running speed: max35 orders/min
Packaging conditions: the speed remains unchanged; the paper is not empty; qualified paper is required
Transmission: AC servo high-precision transmission
Main power supply: 3×380V 50HZ
Control voltage: 220V AC/24V DC
Machine capacity: (approm) 18KW
Compressed air consumption : (approm) 250NL/min
Compressed air pressure: 6bar
Shipment
After receiving deposite, we start producting right now. Within 7-45 working days, we will finish it and have a installation and commerssioning to ensure you can receive a good machine. Then shipment is allowed.
Professional sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary document.
We are a sales team, with all technical support from engineer team
For machine services:
1. Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2. We can train your staff to use new equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity in the condition of freely, also including the charge for transportation, accomodation, etc.
