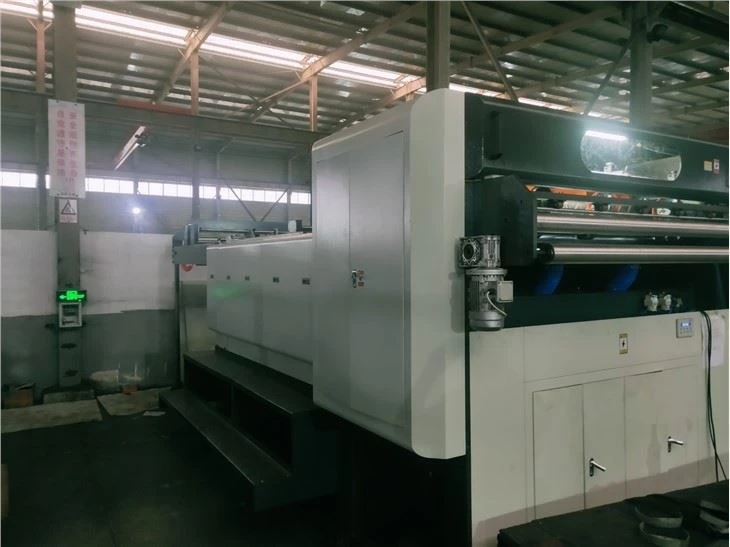

Honor-1400/1600/1800 AC servo roll to sheet cutting paper machine
Suitable for:
Honor machine is professional suitable for cutting big rolling to sheet,packaging materials such as paper, paper plastic composite, color printing,Color printing adhesive, Non-woven fabric. Thin film.etc truncated large drum material. Widely used in paper products processing industry, printing and packaging industry, etc.
Characteristics:
1. Honor machinery With the continuous development of processing industry of paper products and printing industry and competition, crosscutting reel material is paper industry and one of the indispensable equipped with printing and packaging industry.
2. Use the electronic parts, such as Europe and the United States and Japan more flexible application of intelligent control, make the simple mechanical operation, convenient maintenance, more to ensure that the machine under the condition of high speed operation to keep cutting precision and mechanical stability.
3. By the national paper products processing industry and printing and packaging industry users alike.
Main Technical Parameters:
|
Model |
HONOR-1400 |
HONOR-1600 |
HONOR-1800 |
|
Max cutting width |
1400mm |
1600mm |
1800mm |
|
Max diameter of unwinding |
φ1400mm |
φ1400mm |
φ1400mm |
|
Cutting length |
300-1800mm |
300-1800mm |
300-1800mm |
|
Cutting speed |
≤200times/min |
≤200times/min |
≤200times/min |
|
Cutting precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Range of raw material thickness |
60-600g/m2 |
60-600g/m2 |
60-600g/m2 |
|
Height of stacking |
Max. 1100mm |
Max. 1100mm |
Max. 1100mm |
|
Total power |
10kw |
12kw |
12kw |
|
Weight (approx.) |
4200kg |
4800kg |
5500kg |
|
Overall dimension (L*W*H) |
7000×1870×1850 |
7000×2170×1850 |
7000×2470×1850 |
Advantages of machine
The AC servo rotary paper cutter, also known as the drum-type paper cutter, is widely used to cut rolled paper into separate sheets.
From what I have observed in actual production, this servo-driven model performs much better than older mechanical and hydraulic versions. Its cutting accuracy stays at ±0.2 mm during continuous operation, which is a clear improvement compared to the ±0.5 mm tolerance of hydraulic cutters and ±1.0 mm of early mechanical types.
The machine runs steadily at speeds ranging from 50 m/min to 300 m/min, and its key load-bearing parts and cutter rollers are made of 45# steel, which helps reduce long-term deformation and mechanical wear. This machine can handle paper from 60gsm to 1000gsm, including thin printing paper and thick cardboard.
In practical use, several auxiliary structures bring obvious benefits: the built-in tension control system keeps feeding tension stable within ±5% deviation, the anti-curve rack prevents paper from curling, and the static removal device reduces paper adhesion caused by static charge.
Unlike hydraulic cutters, this servo structure has no oil leakage issues and requires fewer maintenance checks. For these reasons, it has gradually become the mainstream option in printing, packaging and stationery factories.
We have more than 15 years experience engineers,We can provide after-sale service and spare parts. Any questions about the machine You can contact our 24 hours:
+86 15225589152
