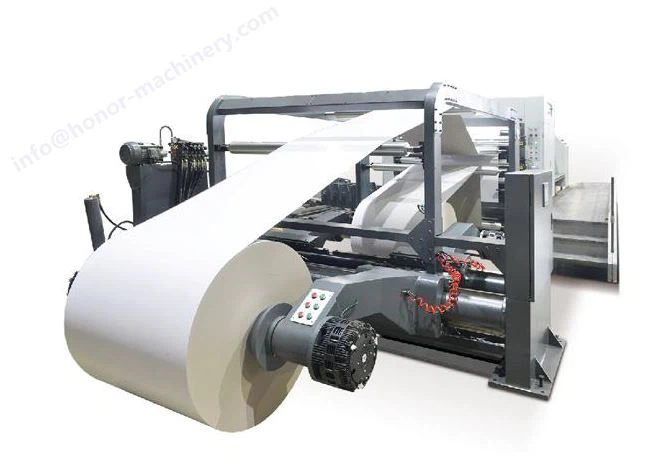

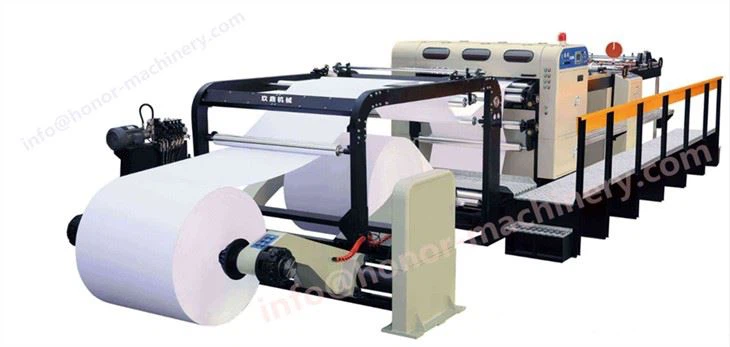

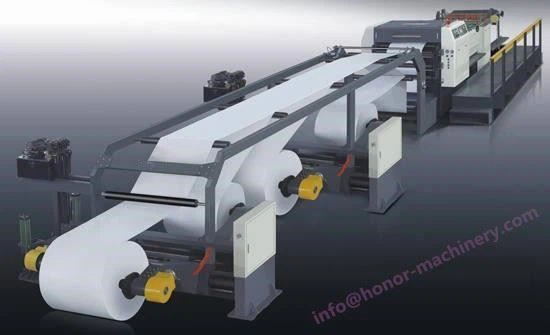

Honor-1400/1600/1800 AC servo roll to sheet cutting paper machine
Suitable for:
Honor machine is professional suitable for cutting big rolling to sheet,packaging materials such as paper, paper plastic composite, color printing,Color printing adhesive, Non-woven fabric. Thin film.etc truncated large drum material. Widely used in paper products processing industry, printing and packaging industry, etc.
Characteristics:
1. Honor machinery With the continuous development of processing industry of paper products and printing industry and competition, crosscutting reel material is paper industry and one of the indispensable equipped with printing and packaging industry.
2. Use the electronic parts, such as Europe and the United States and Japan more flexible application of intelligent control, make the simple mechanical operation, convenient maintenance, more to ensure that the machine under the condition of high speed operation to keep cutting precision and mechanical stability.
3. By the national paper products processing industry and printing and packaging industry users alike.
Main Technical Parameters:
|
Model |
HONOR-1400 |
HONOR-1600 |
HONOR-1800 |
|
Max cutting width |
1400mm |
1600mm |
1800mm |
|
Max diameter of unwinding |
φ1400mm |
φ1400mm |
φ1400mm |
|
Cutting length |
300-1800mm |
300-1800mm |
300-1800mm |
|
Cutting speed |
≤200times/min |
≤200times/min |
≤200times/min |
|
Cutting precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Range of raw material thickness |
60-600g/m2 |
60-600g/m2 |
60-600g/m2 |
|
Height of stacking |
Max. 1100mm |
Max. 1100mm |
Max. 1100mm |
|
Total power |
10kw |
12kw |
12kw |
|
Weight (approx.) |
4200kg |
4800kg |
5500kg |
|
Overall dimension (L*W*H) |
7000×1870×1850 |
7000×2170×1850 |
7000×2470×1850 |
AC Servo Rotary Paper Cutter's Development
AC servo rotary paper cutter, also called a drum-type paper cutter, is industrial equipment that cuts large paper rolls into sheets.
In 1877, German engineer Friedrich Kruse invented the first rotary knife paper sheeter. He pioneered continuous rotary cutting. This technology greatly improved efficiency compared to manual guillotines cutting machines.
Early models (1920s–1940s) adopted electric drive and mechanical transmission, enabling semi-automatic operation with a precision of ±1.0mm.
From 1950s to 1980s, hydraulic systems and digital control were introduced. Hydraulic rotary cutters provided stable pressure. Microprocessors achieved automatic positioning with a precision of ±0.5mm.
Since the 2000s, servo-driven rotary cutters have become mainstream. Their cutting precision is ±0.2mm and speeds up to 300m/min. The core components adapts 45# steel . Equipped with automatic tension control, anti-curve rack, and electrostatic removal devices. They can handle 60–1000gsm paper, widely used in printing, packaging, and stationery industries.
We have more than 15 years experience engineers,We can provide after-sale service and spare parts. Any questions about the machine You can contact our 24 hours:
+86 15225589152
