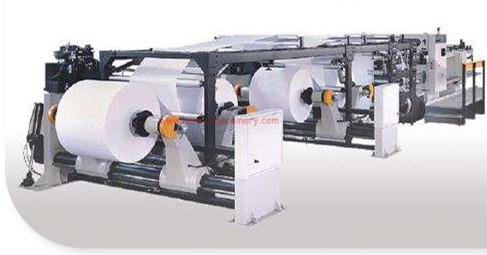

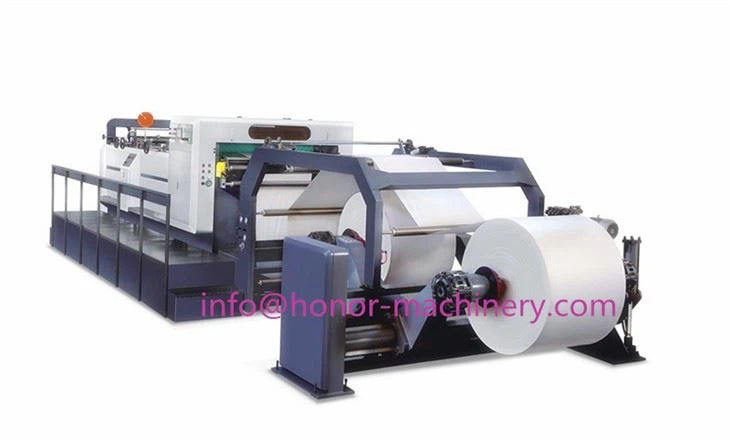

Honor-1400/1600/1800 AC servo roll to sheet cutting paper machine
Suitable for:
Honor machine is professional suitable for cutting big rolling to sheet,packaging materials such as paper, paper plastic composite, color printing,Color printing adhesive, Non-woven fabric. Thin film.etc truncated large drum material. Widely used in paper products processing industry, printing and packaging industry, etc.
Characteristics:
1. Honor machinery With the continuous development of processing industry of paper products and printing industry and competition, crosscutting reel material is paper industry and one of the indispensable equipped with printing and packaging industry.
2. Use the electronic parts, such as Europe and the United States and Japan more flexible application of intelligent control, make the simple mechanical operation, convenient maintenance, more to ensure that the machine under the condition of high speed operation to keep cutting precision and mechanical stability.
3. By the national paper products processing industry and printing and packaging industry users alike.
Main Technical Parameters:
|
Model |
HONOR-1400 |
HONOR-1600 |
HONOR-1800 |
|
Max cutting width |
1400mm |
1600mm |
1800mm |
|
Max diameter of unwinding |
φ1400mm |
φ1400mm |
φ1400mm |
|
Cutting length |
300-1800mm |
300-1800mm |
300-1800mm |
|
Cutting speed |
≤200times/min |
≤200times/min |
≤200times/min |
|
Cutting precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Range of raw material thickness |
60-600g/m2 |
60-600g/m2 |
60-600g/m2 |
|
Height of stacking |
Max. 1100mm |
Max. 1100mm |
Max. 1100mm |
|
Total power |
10kw |
12kw |
12kw |
|
Weight (approx.) |
4200kg |
4800kg |
5500kg |
|
Overall dimension (L*W*H) |
7000×1870×1850 |
7000×2170×1850 |
7000×2470×1850 |
My Strengths
Higher efficencial
Lower labor
Less waste
Solid carbon steel structure
Reliable after-sale
Service
12 months is necessary, and the warranty time is from the date of on-site acceptance. We also support lifetime 24/7 remote technical support for free. If you meet some emergency situations, we can send engineers to your country to solve the problems on site. You just need to charge a certain fee.
Installation and commerssioning play an important role in our service. Because all the customers are worried about such a problem. If the machine doesn't work or appear any other questions after they receiving, what should they do. Not only customers but also us both pay attention to it. So we will have an installation and commerssioning in our factory. Avoiding all the mistake and ensure it runs successfully. After testing, shipment is allowed.
We have more than 15 years experience engineers,We can provide after-sale service and spare parts. Any questions about the machine You can contact our 24 hours:
