Introduction

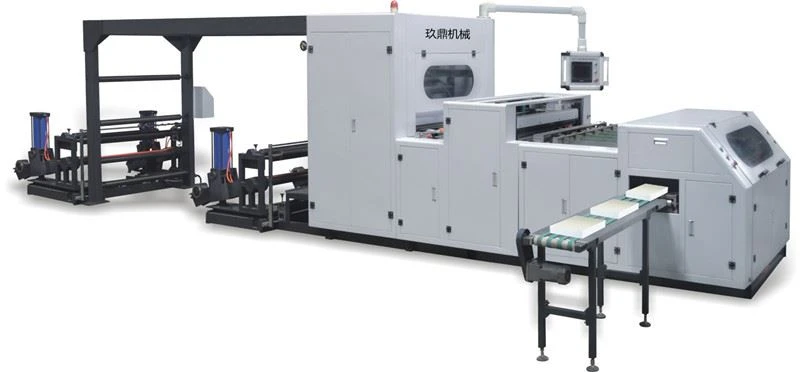

At Honor Machinery Group, we have developed the Model Honor-A4-4, a line of A4 paper cutting and packing machine, ideal for industrial cutting and packing paper at 20-25 packs per minute. This industrial paper cutter for A4 copy paper cuts larger paper rolls into size A4. We also customize the paper product size according to customer needs.
Contact Honor today with questions, and our friendly staff will help you find what you need. Optional parts to our automatic paper wrapping machine are also available.
The A4 paper cutting and packing machine stacks paper in reams directly after cutting the paper roll.
Invention Patents for the A4 Paper Cutting and Packing Machine
1. Sheet collecting equipment for paper cutting machine.
2. Paper cutter shaft for cutting machine.
3. Wrapping paper folding equipment for copy paper packing machine.
Technical Introduction of the A4 Paper Cutting and Packing Machine
Our copy paper slitting, sheeting & ream wrapping machine (model Honor – A4) is a newly developed industrial paper equipment that uses advanced technology for a high production speed. With high cutting precision, the fully automatic paper equipment meets international standards, saving time and labor.
Features
The paper cutting and packing machine is fully automatic with a PLC control system and mechanical automation. The whole process consists of unwinding paper rolls, cutting, counting, transporting, reams dispensing, and packaging so the labor intensity is decreased.
Configuration of the A4 Paper Cutting and Packing Machine
|
1 |
Non-shaft roll-loading control system |
2 sets |
|
2 |
Advanced tension control system - |
4 sets |
|
3 |
Anti-warping mechanisms |
4 sets |
|
4 |
Slitting knives |
5 sets |
|
5 |
Simultaneous cross-cutting knives |
1 set |
|
6 |
High speed paper feeding system |
3 sets |
|
7 |
Low speed paper feeding system |
2 sets |
|
8 |
Edge trimming and discharging system - |
1 set |
|
9 |
2D oscillation, making sheets orderly; screw lifting device used to collect sheets for reams |
1 set |
|
10 |
PLC counting device |
1 set |
|
11 |
Reams of paper longitudinal ejecting equipment |
1 set |
|
12 |
PLC error alert and halting system, PLC control system |
1 set |
Main Technical Parameters of the A4 Paper Cutting and Packing Machine
|
Max. width of paper roll |
846mm |
|
Net cutting width |
840mm |
|
Number of cutting tools |
4 cuttings-A4 210mm(width) |
|
Diameter of paper roll |
400-1200mm |
|
Diameter of paper roll's core |
3" (76.2mm) or 6" (152.4mm) |
|
Weight of paper sheet |
60-100g/ m² |
|
Length of cut paper |
A4(297mm) |
|
Paper quantity |
0-500 sheets |
|
Max. ream height |
65mm |
|
Designing speed of paper cutting |
160m /min |
|
Cutting speed |
538times/min |
|
Cycle time of each ream |
4.3/min |
|
Paper cutting speed |
130m /min |
|
Working cutting speed |
437times/min |
|
Ream delivery speed |
3.5/min(14 reams/min) |
|
Paper cutting accuracy |
±0.2mm |
|
Paper cutting condition |
1.Stable speed |
|
Transmission |
AC Frequency conversion, stepless speed regulating |
|
Main power source |
3phase/380v/50Hz |
|
Control voltage |
220V AC/22V DC |
|
Total Power |
35KW |
|
Air consumption |
300NL/min |
|
Pneumatic pressure |
6bar |
|
Overall dimension (cutting unit) |
15000×2750×2100mm |
|
Weight (cutting unit) |
12 T |
|
Overall dimension (packing unit) |
6000×3400×1600mm |
|
Weight (cutting unit) |
2.5 T |
Detailed Introduction for the A4 Paper Cutting and Packing Machine
|
Roll Loading Unit |

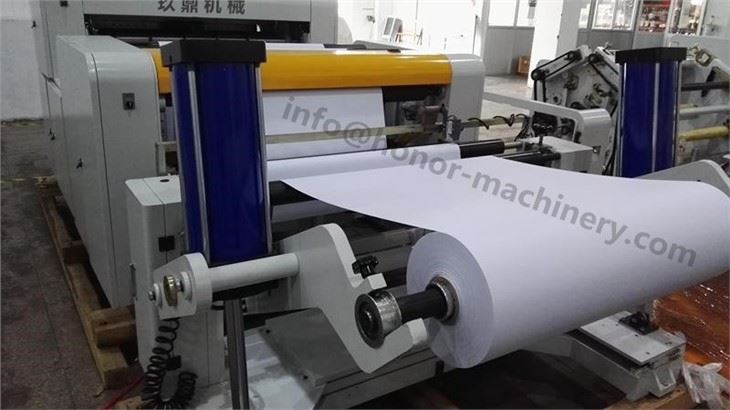

Incorporates 4 unwinding rolls and an advanced magnetic-power brake and hydraulic system so the paper is fed stably through without wrinkling or tearing. |
|
Slitting Unit |
Uses Delsar's up-slitting knife from Italy, a knife with better sectioning and a service life 3 times longer than knives from other brands. |
|
Sheeting Unit |
Uses wear-resistant rubber rollers and advanced double cyclotron hob technology for accurate cutting and a long service life. |
|
Uses hard cast knives Germany's St Paul brand. This knife has a service life 6 times longer than similar knives from other brands. |
|
|
Conveying Unit 1 |
Uses ContiTech's belts from Germany and a Weinview touch screen from Taiwan. |
|
Sheet Stacking Unit |
Uses a cylinder without piston rods and an up and down motor from Germany, reducing the vibration and noise. |
|
Conveying Unit 2 |
Stably conveys reams of sheets to the wrapping unit. |
|
Wrapping Unit |
Wraps reams of sheets (500pcs) automatically. |
|
Electrical Components |
Uses Siemens' PLC and Omron's photoelectric switch, ensuring a long service life.
|
New Unwinding Stand
The new paper loading rack is an automatic auxiliary feeding device for AC servo paper cutters. It is specially designed for roll paper and large paper stacks. This structure replaces traditional manual paper feeding, realizing automatic lifting, paper pushing and positioning.
Main Structure
It consists of a lifting frame, servo paper pushing mechanism, air floating platform, photoelectric correction sensor and protective safety grating. The whole frame is made of thickened steel plate with stable bearing capacity.
Working Principle
The paper stack or paper roll is placed on the loading rack. The servo system controls the lifting height. The air-floating platform reduces friction during paper pushing. The sensor calibrates the paper position to ensure neat feeding, which greatly improves cutting flatness.
Product Advantages
Reduce manual handling and lower labor intensity.
Improve feeding accuracy and avoid paper deviation.
Compatible with A4 copy paper, roll paper and offset paper.
Stable operation, low noise and high safety performance.
Technical Parameters of New Unwinding Stand
|
Applicable Model |
1300/1500/1700 program-controlled AC servo paper cutter |
|
Max Load Capacity |
1000 kg |
|
Max Feeding Width |
1700 mm |
|
Lifting Driving Method |
Servo motor + ball screw |
|
Lifting Stroke |
0–1200 mm |
|
Lifting Positioning Accuracy |
±0.1 mm |
|
Paper Pushing Mode |
Servo closed-loop control |
|
Table Structure |
Air-floating ball platform |
|
Correction Method |
Photoelectric automatic deviation correction |
|
Applicable Materials |
Paper roll, whole sheet paper, A4 copy paper |
|
Working Power |
380 V / 50 Hz |
|
Frame Material |
Thickened welded steel plate |
|
Safety Configuration |
Infrared grating, emergency stop button, overtravel protection |
Certifications & Compliance of Paper Cutter
Our paper cutters including AC servo paper cutter and new paper loading rack comply with international safety and quality standards, with complete certification and technical documents for global market sales.
CE Certification
Comply with EU Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.Conform to relevant European standards: EN ISO 12100, EN 60204-1, EN 1034-5, EN ISO 13849-1
North America Certification
Meet UL 62368-1 and CSA C22.2 No.61010-1 safety requirements, suitable for the US and Canadian markets.
Domestic China Standard
Implement national standards GB/T 209566-2025 and industry standard JB/T 8115-2016.Equipped with factory product certificate, type inspection report and complete operation manual.
Enterprise Qualification
The manufacturer has passed ISO 9001 quality management system certification, ensuring stable product quality and standardized production process.
Customer Feedback: Working with this company means gaining practical, long-term benefits that directly affect daily production and overall operations.
First, their equipment brings real operational stability. I've found that having an in-house parts workshop makes a noticeable difference: key components like servo motors, ball screws, and frames are machined and assembled under their own quality control, so the machines run more consistently, with fewer unexpected stops during peak shifts. In actual use, this translates to fewer late shifts and less overtime to catch up on lost output.
Second, they help lower long-term operational costs beyond just the purchase price. Factory-direct sales eliminate middle layers, so pricing is straightforward and predictable. More importantly, their machines are built for heavy, continuous use. In our experience, maintenance costs stay low, and common wear parts are readily available. This reduces both downtime and the risk of expensive emergency replacements.
Third, they improve workplace safety and ease daily labor. The servo-controlled feeding system and the new automatic paper loading rack greatly reduce heavy manual lifting and repeated handling. On our shop floor, this has cut down worker fatigue and minor injuries, which also helps reduce turnover and training time for new staff.
Fourth, they provide reliable, consistent support that matters in real production. With decades of export experience, they understand different regional standards, documentation requirements, and delivery expectations. Their technical team answers questions clearly and in a timely way, and when issues arise, spare parts are shipped quickly, which minimizes production delays. Unlike some suppliers who only focus on sales, they stay involved long after delivery.
Fifth, they reduce compliance and market-entry risks. Their machines meet international safety and quality standards, including CE and other relevant certifications. This means when expanding into new markets, we don't face unexpected regulatory hurdles. The equipment's design also allows for future upgrades, such as higher precision modules or automation add-ons, which supports gradual capacity growth without full machine replacement.
Sixth, they offer consistent quality control and predictable delivery. Having their own machining center enables strict quality checks at every stage, from raw materials to final assembly. We've experienced fewer quality inconsistencies, and delivery schedules are more reliable. This predictability helps us plan production and meet customer deadlines with confidence.
Overall, what this company provides is not just machines, but operational reliability, cost clarity, safer working conditions, stable support, compliance assurance, and room for long-term growth. These are the practical, everyday benefits that make a real difference for a production business.
