Slitting Machine, Servo High Speed Slitting Machine.

Slitting Machine, Servo High Speed Slitting Machine.
Product Introduction:
This machine can cut all kinds of printing and packaging paper; The unwinding machine adopts photoelectric tracking, automatic deviation correction; Automatic meter; Pneumatic automatic feeding; Unwinding magnetic powder tension control; Excellent performance of winding and counting, easy operation, stable and reliable operation. 1, the chassis and wall panels are cast iron structure, to ensure the stability of high-speed operation. 2, unwinding using ordinary mechanical shaft, cone sleeve fixed, to adapt to the paper core deformation of the base material. 3, unwinding using deviation correction, improve high precision cutting. 4. The double-handed roller adopts air expansion shaft and is equipped with pressure roller. 5. The tension of rewinding and unwinding is independently controlled by each magnetic powder. Pneumatic slip differential reeling reel 6. The waste side guide pipe and high-power fan will blow the waste side out from the right side of the machine. 7, Independent electrical operation cabinet, microcomputer integrated control, winding and counting. Three motor control 8. All aluminum guide rolls of the machine adopt high hardening guide rolls made by Taiwan and Shanghai joint venture company, with static and static balance treatment.
Send Inquiry
Description

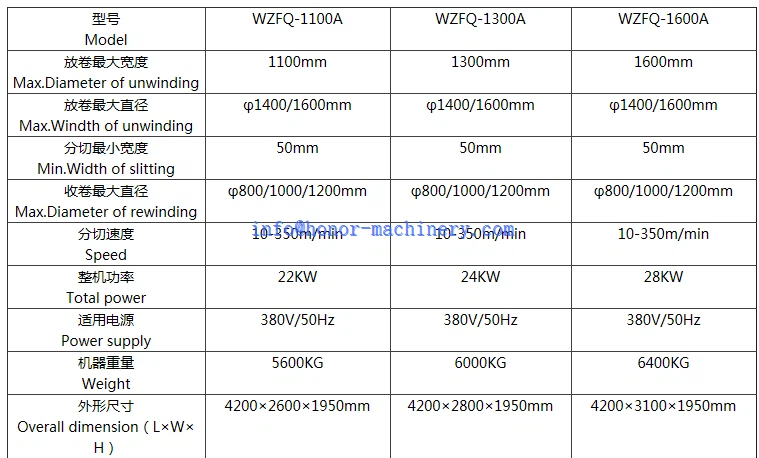

Technical Parameters

_20210507100431QQ20210518211520
