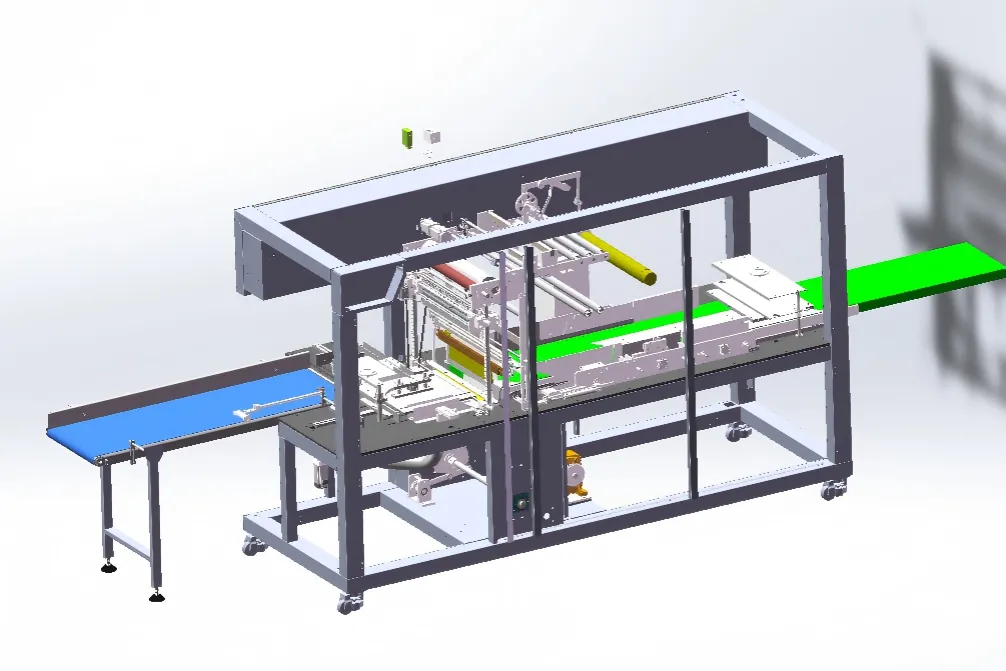

Packaging Machine Product Overview
The packaging materials used for this device include BOPP or PVC double-sided heat-sealable film, laminated paper, kraft paper, and other multifunctional materials.
This machine was meticulously designed and modified based on the absorption and adaptation of advanced foreign equipment. It features a compact structure, simple operation, and easy maintenance; by replacing only a few components, it can package products of various specifications.
It is suitable for packaging large box-shaped items, automatically stack multiple individual boxes for combined packaging (thereby replacing conventional combined heat-shrink packaging machines), and is ideal for products requiring photoelectric tracking, such as strip-pack cigarettes, tea, boxed chewing gum, pharmaceuticals, cosmetics, and health supplements.
Main Technical Parameters
|
Adapt to packaging materials |
0.018 mm-0.03 mm BOPP double-sided heat-seal film, coating paper, coated kraft paper; outer diameter φ320 mm, inner diameter φ70 mm |
|
Packaging Speed |
10-40 Reams/Min (speed adjustable depending on product size) |
|
packing measurement |
L80-420 mm, W60-300 mm, H30-120 mm (all dimensions cannot be set to the maximum or minimum value). |
|
design power |
8.5kw |
|
power consumption |
8.5kw |
|
voltage |
380V-50Hz |
|
working air pressure |
0.7Mpa |
|
Device Weight (approx.) |
900kg |
|
Host Size |
2900*1100*1850 |
|
Transportation Dimension |
1550*380*830mm |
Specifications and Configuration of Components
|
Electrical Device Name |
Model |
Quantity |
Brand and Place of Origin |
|
Main servo motor |
MS6H-130CS15B2-22P3 |
1 unit |
Xinjie |
|
reduction box |
2 units |
Oumait |
|
|
servo motor |
MS6H-60CS30B1-20P4 |
3 units |
Xinjie |
|
touch screen |
TK8071iP |
1 unit |
Xinjie |
|
Temperature Control Module |
DTE10T-N |
1 |
Xinjie |
|
PLC |
XD5E-48T-E |
1 unit |
Xinjie |
|
AC contactor |
LC1N-1810M5N |
1 |
Schneider |
|
auxiliary relay |
MY2N-GS DC24 BYOMZ/C |
2 |
OMRON |
|
Travel Switch |
TL-Q5MC1-Z |
1 |
OMRON |
|
solid state relay |
G3NB-240B-1 DC5-24 |
7 |
OMRON |
|
Cylinder |
9 |
Yadeke |
|
|
electromagnetic valve |
4V210-06-B DC24V PT |
5 |
Yadeke |
|
Transmission Motor |
ZDBLS50-A-54.6-270-40-D-24 |
1 |
Ningbo Zhongda |

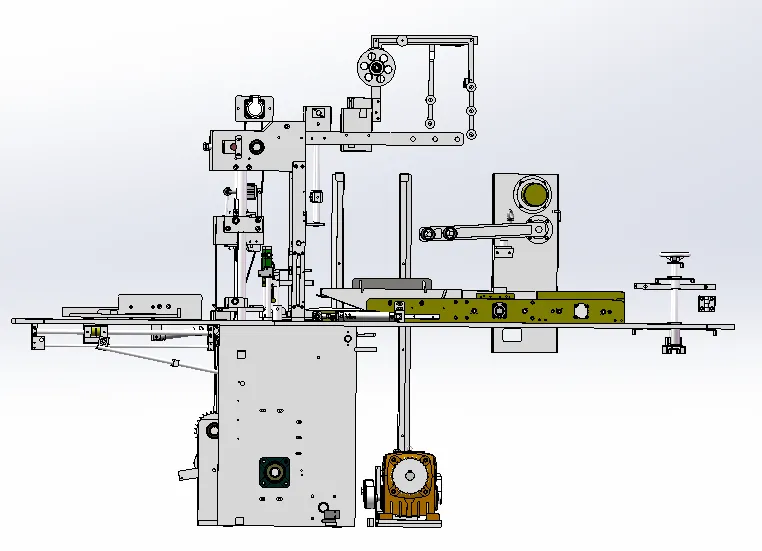

Front view of the overall dimensions
