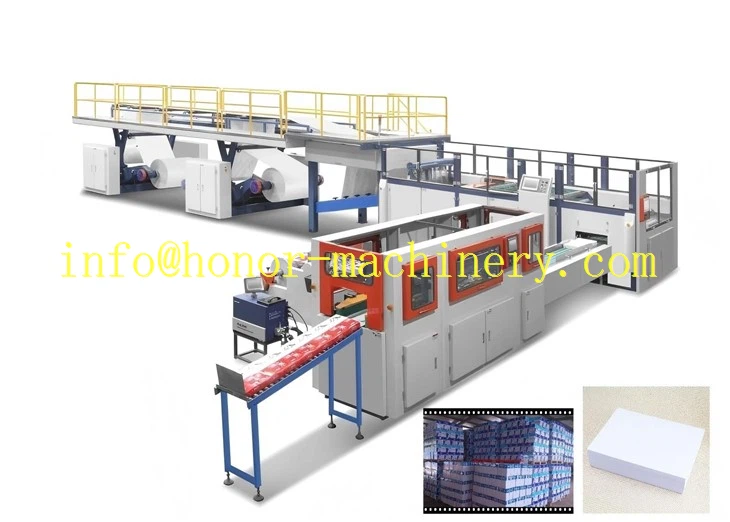

A4 paper production line
A4 paper production line is designed with international advanced technology and integrated innovative upgrades.
A4 paper production machine fills the domestic gap and shortens the time of slitting and packaging. The efficiency of production slitting and packaging is also improved greatly. The machine's technology reaches the international advanced level.
This machine is suitable for slitting and ream wrapping of copy paper. Different models meet the customers' various capacity demand.
Equipped with a new type of high speed unwinding stand, the paper running speed is much improved, up to 40 reams/min, featuring with stable and accurate job.
Nodular cast iron is firstly used by us in the field as the material of frame, which prevent the machine deforming, which suitable for heavy duty job.
Cutting precision within : ±0.2mm
Parameter
| Cutting Type | HONOR-A4-4 | HONOR-A4-4 | HONOR-A4-5 |
Paper Width |
845-846mm | 845-846mm | 1055-1056mm |
Production Speed |
Max 270m/min | Max 270m/min | Max 270m/min |
Cutting accuracy |
±0.2mm | ±0.2mm | ±0.2mm |
Paper Rolls number |
4Rolls | 5Rolls | 5Rolls |
Cutting numbers |
4Cuttings | 4Cuttings | 5Cuttings |
Output of the machine |
Max 20-25Reams/min | Max 25-30Reams/min | Max 35-40Reams/min |
Power |
32kw+18kw+19kw | 32kw+18kw+19kw | 32kw+18kw+19kw |
Dimension (L×W×H) |
16.5m*2.75m*2.1m | 18.5m*2.75m*2.1m | 20m*2.96m*2.1m |
Our factory & quipment
Our factory covers an area of more than 2,000 square meters. The A4 paper production is widely recognized as an excellent paper cutting machine. Honor Machinery is renowned for integrity and good faith. We supply customers with superior machines, together with high-quality office paper of sufficient weight. Choose us, and we will offer you reliable and professional service.
In the new market economy,HONOR MACHINERYcompanies will be in "good faithcooperation, The user first "businessphilosophy to good service forsecurity, to continue Adhering to the"want to enterprises are thinking, butdid not want to enterprises; to dobusiness of doing, Without makingenterprises more to do "businessapproach. Work together to buildbrand packaging equipment. Providecustomers with better service.
Some tips to select A4 Production Line:
First of all, the requirements of production line are defined by your production capacity. And then research the office paper market to set the current plan and future plan. After clearing your business goals, evaluate the production line from suppliers or manufactures. Considering from many factors like machine materials, functions, features, automatic level, precision, output, customization options, after-sales support and quality of each part. Make sure that the production line can fit your demands well.
For medium and large-scale operations, the Honor-A4 series high-speed automatic A4 size paper cutting and packing production line is the best choice. The model is designed to handle larger volumes. High efficiency with an output of up to 40 bags per minute.The maximum capacity is 280 meters per minute.
The A4 size paper cutter is equipped with AC servo, PLC control, and automatic correction features. These essential components lead to the machine's precision within 0.2 millimeters, maintain smooth and stable operation. Of course, the A4 paper production line is fully customizable. Evaluating your requirements like space, budget, capabilities, We offer customized solutions tailored to your needs.
